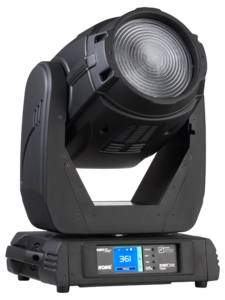

ROBE-ROBIN 300E WASH

ROBE-ROBIN 300E WASH
Giá bán: Liên hệ

ROBE-ROBIN 300E WASH

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02
  • Thông tin sản phẩm
  • Thông số kỹ thuật



THÔNG SỐ ROBIN 300E WASH

Source

  • Lamp: Compact high-presure metal halide lamp
  • Base: PGJX28
  • Approved model: Philips MSD Gold 300/2 MiniFastFit
  • Control: Automatic and remote on/off
  • Ballast: Electronic

Optical System

  • Dichroic glass reflector for maximising the light efficiency
  • Beam angle: 4° – 40°

Electrical Specification

    • Power supply: Electronic auto-ranging
    • Input voltage range: 100–240 V, 50/60 Hz
    • Power consumption: 400 VA at 230 V/50 Hz


Mechanical Specification

  • Height: 518 mm (20.4″) – head in horizontal position
  • Width: 433 mm (17.0″)
  • Depth: 408 mm (16.1″)
  • Weight: 20 kg (44.1 lbs)

Thermal

  • Maximum ambient temperature: 45 °C (113 °F)
  • Maximum surface temperature: 80 °C (176 °F)

Control and Programming

  • Setting & Addressing: ROBE Navigation System 2 (RNS2)
  • Protocol: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2
  • Control channels: 15, 17, 20
  • 3 DMX protocol modes
  • 3-editable programs, each up to 100 steps
  • Stand-alone operation
  • Optional wireless version available: CRMX™ technology from Lumen Radio

Display

  • QVGA Robe touch screen with battery backup gravitation sensor for auto screen positioning operation memory service log with RTC
  • Pan/Tilt resolution: 16bit
  • Movement control: Tracking and vector
  • Colour wheel positioning: 8 or 16bit
  • Zoom: 8 or 16bit
  • Dimmer: 8 or 16bit
  • Ethernet port: Art-Net protocol, ready for ACN
  • Data in/out: Locking 3-pin & 5-pin XLR
  • Built-in analyser for easy fault finding

Electromechanical Effects

  • Cyan: 0–100%
  • Magenta: 0–100%
  • Yellow: 0–100%
  • CTO: 0–100%
  • Hot-spot control: Hot-or-not-spot
  • Colour wheel: 7 replaceable ″SLOT&LOCK″ dichroic filters + open, trapezoid shape
  • Dimmer/Shutter: Full range dimming and variable strobe effect, Electronic strobing ″ZAP″
  • Motorized zoom
  • Pan: 540°
  • Tilt: 260°

Rigging

  • Mounting points: 2 pairs of ¼-turn locks
  • Fixation option: Pan/Tilt-lock mechanism
  • 2 x Omega bracket with ¼-turn quick locks
  • Safety chain/rope attachment point

Optional Accessories

  • Front wide-angle lens
  • Top hats
