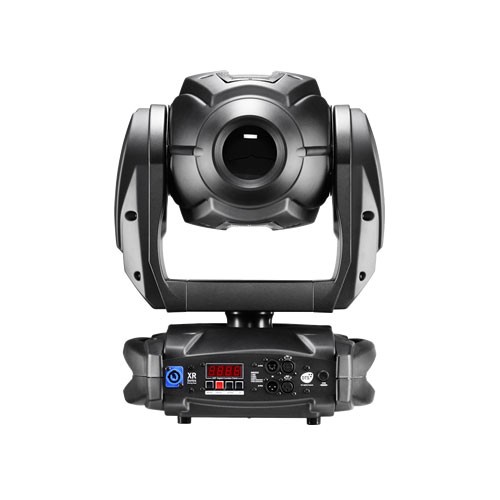

DTS-XR 5 Spot

Giá bán: Liên hệ

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

THÔNG SỐ XR5 SPOT

Lamp

GE CSD 250/2SE lamp (18.000 Lumens)

Base type GY9,5

Optical group

5.450 Lux at 5 m (14°)

Optical group made with 2 coated lenses combined with a dichroic glass reflector

16-bit motorized focus

16-bit motorized iris

14° zoom angle (19° – 22° available)

Linear dimmer / shutter / strobe (0,85 flash/sec to 10 flash/sec)

Colour generation

8-colour wheel with linear selection for perfect 2-colour beams

Dynamic effects

2 overlapping gobo wheels for multiple effects:

Customisable rotating gobo wheel (7 gobos)

Fixed gobo wheel (11 gobos)

3-facet rotating prism

Interface / Control / Programming

LED display 4 soft-keys (control / management / monitoring of the main parameters) Controlled via DMX 512 standard digital communication protocol Wireless ready Internal operating system updatable via D.T.S. RED BOX interface and hyperterminal program on windows based PC

DMX

21 DMX channels

Pan & Tilt

‘FAR’ (Free Axis Rotation) optional

16-bit movement resolution

Extremely fast rotations: Pan 540° (2,8 sec.); Tilt 270° (2 sec.)

4 Selectable speed ranges Pan/Tilt locking system with recessed buttons Automatic

Pan/Tilt repositioning in case of knocks

Power supply

Electro-magnetic ballast; 230 V 50 / 60 Hz Power consumption: 350 W

Connectors

DMX: 4 XLR connectors (3-pole In and Out; 5-pole In and Out) by Neutrik; Power supply: POWERCON connector by Neutrik

Operating ambient temperature

-10° / 40°

Weight

26 Kg

Internal safety devices

Overvoltage circuit protection and overtemperature circuit protection

International certifications Safety: EN 60598-1: 1993 EN 60598-2-17: 1989 A1-A3: 1993

EMC: EN 55015

Included items

User’s manual 1 x CSD 250/2SE lamp 1 x POWERCON male cable connector (cod. 0520P014) 1 x XLR 5 Pins male cable connector (cod. 0508B028) 1 x XLR 5 Pins female cable connector (cod. 0508B027) 2 x “C” Clamp G100 black/professional (max. load. 200Kg) (cod. 0521A015) Omega clamp with ”Fast Lock” connection 1/4 turn 1 couple (2 pieces) (cod. 02K00467)

Packing (LxDxH) 550 x 440 x 800 mm 33 Kg
