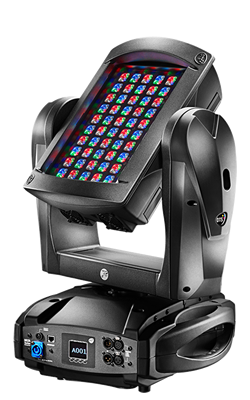

Moving Head Projectors DELTA 10 WASH ZOOM

LED technology

* 240 x LEDs (60 Red, 60 Green, 60 Blue, 60 White); 19.500 Lumens

* Also available as DELTA 10 CT WASH ZOOM (180 white + 60 amber LEDs - 2700°K - 6500°K colour temperature)

* also available on demand in RGBA version

Optical group

* 6.200 Lux at 5 m * 13,5° - 40° motorized linear zoom with high efficiency optical system.

* high mixing quality for RGBW colours, thanks to LEDs even distribution pattern

* uniform projection on surfaces, no matter what colour is used

Colour generation

* 16 million colours

* 3 colour mixing modes: RGBW / CMY / HSV

* variable linear colour temperature (2700°K - 6500°K)

* dedicated DMX channel for custom whites

Interface / Control / Programming

* Multi-function OLED graphic colour display + 4 soft keys: control / management / monitoring of the main parameters

* Controlled via DMX 512 standard digital communication protocol

* Wireless ready

* Ethernet ready

* Internal operating system updatable via D.T.S. RED BOX interface and hyperterminal program on windows based PC

DMX

20 DMX channels

Extra features

* Twilight sensor for switching the unit on and off automatically, according to external light intensity

* Playback of a pre-programmed sequence of events over an entire week

Pan & Tilt

* ‘FAR’ Free Axis Rotation system (patent pending) optional: limitless pan / tilt rotation, in either direction, never having to reverse motion

* 16-bit movement resolution * Pan 540° (3,9 sec.); Tilt 270° (2,6 sec.) * 4 selectable speed ranges * Pan/Tilt locking system with recessed buttons

* Automatic Pan/Tilt repositioning in case of knocks

Power supply

* Electronic full-range AC 90-260 V 50 / 60 Hz

* Power consumption: 90 V - 5,3 A - 480 W 120 V - 4 A - 480 W 230 V - 2,1 A - 480 W 260 V - 1,85 A - 480 W

Connectors

* DMX: 4 XLR connectors (3-pole In and Out; 5-pole In and Out) by Neutrik;

* Power supply: POWERCON connector by Neutrik

Operating ambient temperature

-10° / 40°

Weight

28 Kg

International certifications

Certification CE; LED Class: Class 2 LED product

Included items

* 1 x POWERCON male cable connector (cod. 0520P014)

* 1 x XLR 5 Pins male cable connector (cod. 0508B028)

* 1 x XLR 5 Pins female cable connector (cod. 0508B027)

* 2 x“C” Clamp G100 black /professional (max. load. 200Kg) (cod. 0521A015)

* Omega clamp with “Fast Lock”connection 1/4 turn 1 couple (2pieces) (cod. 02K00467) * User’s manual

Packing (LxDxH) 550 x 440 x 800 mm 35 Kg
