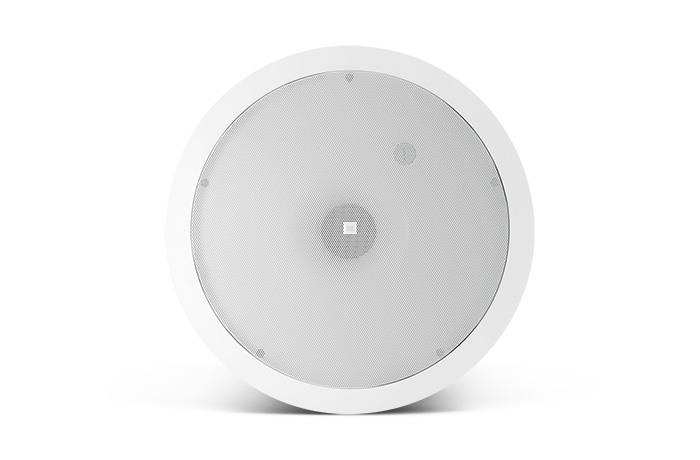

Loa JBL Subwoofer Control 19CST

Model: Loa JBL Subwoofer Control 19CST

Hãng : JBL/Mý (Chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 8.500.000 vnđ

CONTROL 19- CST 8" In-Ceiling Subwoofer, 60W, 30W, 15W, 7.5W @ 70V/100V

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

In-Ceiling Subwoofer

The Control 19CST uses advanced proprietary technologies to produce powerful bass from a low profile
in-ceiling design.

FEATURES

∧

Unique Nested Chamber™ design and Linear
Component: Long excursion 200 mm (8 in) driver.
Packaged with grille, backcan and tile rails for fast
Simple installation and wire connection method.

	Frequency Range	42 Hz - 200 Hz
	Power Capacity	200 W Continuous Program Power
	Transformer Taps	70 V: 75 W, 30 W, 15 W & 7.5 W 100 V: 75 W, 30 W, & 15 W
	Nominal Coverage Angle	180° conical coverage
	Rated Maximum SPL	115 dB @ 1 m (3.3 ft) in ceiling near corner (π/2)
	Nominal Impedance	8 ohms
	Low Frequency	200 mm (8.0 in) Polypropelene cone. 38 mm (1.5 in) coil on aluminum former
	Enclosure Material	Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
	Terminations	Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm2)
	Safety Agency Rating	In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90, NFPA70A.
	Outside Dimensions (H x Dia)	345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
	Cutout Size (H x W)	305 mm (12.0 in)
	Net Weight (ea)	6.3 kg (14 lb)
	Shipping Weight (pair)	14.3 kg (32 lb)
	Included Accessories	C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
