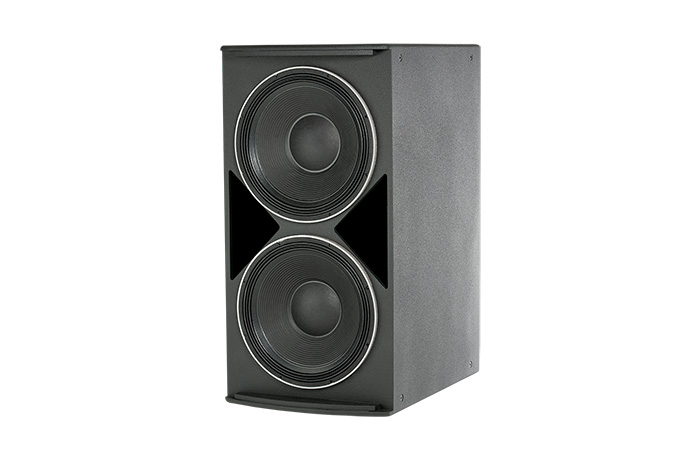

Loa JBL Subwoofer ASB 7128

Model: Loa JBL Subwoofer ASB 7128

Hãng: JBL/Mỹ (Chính hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Mexico

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 151.500.000 vnđ

ASB7128 Double 18" High Output Subwoofer, 2400W/9600W 4-ohms 141dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

Ultra Long Excursion High Power Dual 18" Subwoofer

The ASB7128 is a high power, lightweight front-loaded vented subwoofer enclosure housing two of JBL's exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofers. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").

FEATURES

∧

2 x 2269H 18" Differential Drive® dual voice coil dual gap, neodymium magnet transducers
4000 watts continuous pink noise,
16000 watts peak power handling capacity
Ultra Long Excursion
Large vent area for high output with low distortion
Parallel/Discrete switchable input mode
For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products

SPECIFICATIONS

	Frequency Range (-10 dB)	20 Hz - 1 kHz
	Frequency Response (± 3 dB)	25 Hz - 1 kHz
	Transducer Power Rating	4000 W (16000 W peak), 2 hrs.
	Input Modes	Drivers Parallel / Drivers Discrete
	Long-Term System Power Rating	2400 W (9600 W peak), 100 hrs.
	Maximum SPL (1m)	25 Hz - 200 Hz: 135 dB-SPL cont avg. (141 dB peak)
	System Sensitivity	25 Hz - 200 Hz: 99 dB-SPL, 1W (2.0V) @ 1m
	Nominal Impedance	4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
	Low Frequency Driver	2 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive®, VGC™ drivers
	Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
	Suspension Attachment	16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware
	Finish	Black DuraFlex™ finish. White available upon request.
	Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
	Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
	Environmental Specifications	Mil-Std 810; IP-x3 per IEC529.
	Dimensions (H x W x D in vertical cabinet orientation)	1092 x 560 x 815 mm (43.0 x 22.0 x 32.1 in)
	Net Weight	71.9 kg (158.5 lb)
	Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers.
