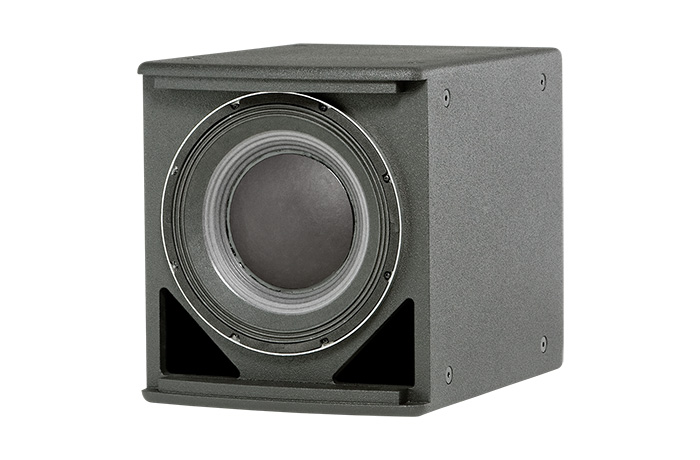

Loa JBL Subwoofer ASB 6112

Model: Loa JBL Subwoofer ASB 6112

Hãng: JBL/Mỹ (Chính hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Mexico

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 40.580.000 vnđ

ASB 6112 Single 12" Subwoofer, 700W/2800W 8-ohms 132dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

Compact High Power Single 12" Subwoofer

The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2263H Differential Drive® dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.

FEATURES

∧

2263H 12" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
1000 watts continuous pink noise,
4000 watts peak power handling capacity
Large vent area for high output with low distortion
For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products

SPECIFICATIONS

	Frequency Range (-10 dB)	35 Hz – 1 kHz
	Frequency Response (± 3 dB)	43 Hz – 1 kHz
	Transducer Power Rating	1000 W (4000 W peak), 2 hrs.
	Long-Term System Power Rating	700 W (2800 W peak), 100 hrs.
	Maximum SPL (1m)	40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak)
	System Sensitivity	40 Hz - 300 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
	Nominal Impedance	8 ohms
	Low Frequency Driver	1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
	Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
	Suspension Attachment	16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
	Finish	Black DuraFlex™ finish. White available upon request.
	Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
	Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
	Environmental Specifications	Mil-Std 810; IP-x3 per IEC529.
	Dimensions (H x W x D in vertical cabinet orientation)	406 x 369 x 483 mm (16.0 x 14.5 x 19.0 in)
	Net Weight	16.3 kg (36.0 lb)
	Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers.
