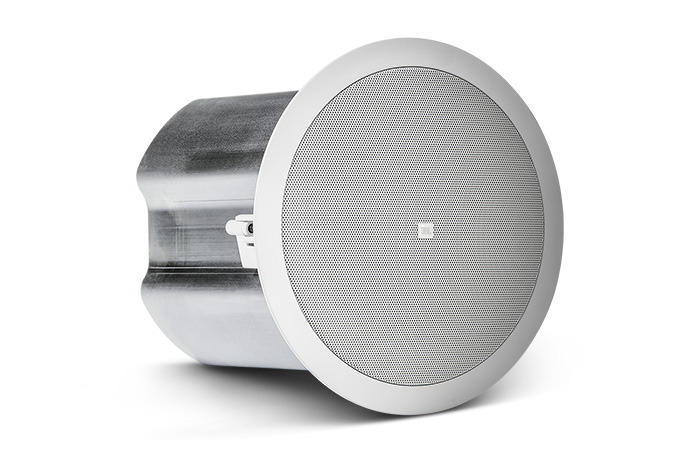

Loa JBL Control 16C/T

Model: Loa JBL Control 16C/T

Hãng: JBL/Mỹ (Chính Hãng)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 5.500.000 vnđ

Control 16C/T 6.5" Ceiling Loudspeaker, 50W/100W @ 8ohms, 25 W, 12.5 W, 6.3 W, 3.8 W @ 70V/100V

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

Two-Way 6.5" Coaxial Ceiling Loudspeaker

Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.

FEATURES

∧

Components:
• 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround
• 19 mm (0.75 in) soft-dome liquid-cooled tweeter
Blind-mount backcan for quick and easy install
Dual conduit/cable clamps
Combined 70V/100V and low impedance direct operation
•50 Watts at 8Ω nominal setting
• 30W multi-tap at 70V/100V
62 Hz – 20 kHz bandwidth with wide 110° coverage
High 91 dB sensitivity for high maximum SPL
White or black (-BK)

SPECIFICATIONS

	Frequency Range (-10 dB)	62 Hz – 20 kHz
	Power Capacity (at low-Z)	100 Watts Continuous Program Power 50 Watts Continuous Pink Noise
	Transformer Taps	30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only)
	Frequency Response (±3 dB)	96 Hz – 15 kHz
	Nominal Sensitivity	91 dB
	Nominal Coverage Angle	110° conical coverage
	Directivity Factor (Q)	7.8
	Directivity Index (DI)	8.2 dB
	Rated Maximum SPL	108 dB @ 1 m (3.3 ft) average, 116 dB peak
	Nominal Impedance	8 ohms (in direct/bypass 8Ω setting)
	Crossover Network	12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
	LF Driver	165 mm (6.5 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
	HF Driver	19 mm (3/4 in), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide
	Input Connector	Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
	Connector Wiring	Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
	Strain Reliefs	Strain relief for two cables or two flex conduits via coupled clamping mechanism
	Materials	ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
	Safety Agency	UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
	Dimensions	253 mm diameter x 225 mm depth from back of baffle (10.0 in diameter x 8.8 in depth)
	Ceiling Cutout Size	Circular cutout with 223 mm (8.8 in) diameter (cardboard cutout template included)
	Ceiling Thickness Range	Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses
	Safety Seismic Attachment	One point, top surface
	Net Weight	3.4 kg (7.4 lbs, one speaker)
	Shipping Weight	11.2 kg (24.7 lbs, pair in master carton)
