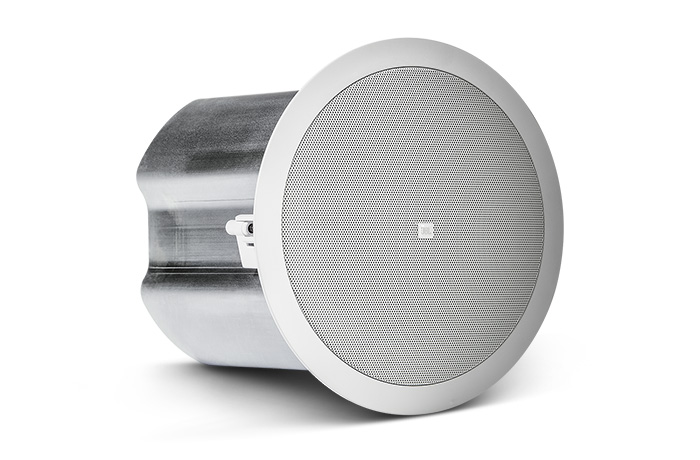

Loa JBL Control 12C/T

Model: Loa JBL Control 12C/T

Hãng: JBL/Mỹ (Chính Hãng)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 3.200.000 vnđ

Control 12C/T 3" Ceiling Loudspeaker, 20W/40W @ 8ohms, 15 W, 7.5 W, 3.8 W, 1.9 W @ 70V/100V

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

Compact Ceiling Loudspeaker

Control 12C/T is a full-range ceiling speaker consisting of 76 mm (3 inch) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 material, with a preattached blind-mount backcan for quick and easy installation.

FEATURES

∧

76 mm (3 in) full-range driver
Blind-mount backcan for quick and easy install
Combined 70V/100V and low impedance direct operation
• 20 Watts at 8Ω nominal setting
• 15W multi-tap at 70V/100V
68 Hz – 17 kHz bandwidth with wide 130° coverage
White or black (-BK)

SPECIFICATIONS

	Frequency Range (-10 dB)	68 Hz – 17 kHz
	Power Capacity (at low-Z)	40 Watts Continuous Program Power 20 Watts Continuous Pink Noise
	Transformer Taps	15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
	Frequency Response (±3 dB)	95 Hz – 15 kHz
	Nominal Sensitivity	84 dB
	Nominal Coverage Angle	130° conical coverage
	Directivity Factor (Q)	9.8
	Directivity Index (DI)	7.4 dB
	Rated Maximum SPL	97 dB @ 1 m (3.3 ft) average, 103 dB peak
	Nominal Impedance	8 ohms (in direct/bypass 8Ω setting)
	Full-Range Driver	76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension
	Input Connectors	Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
	Connector Wiring	Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
	Strain Reliefs	Strain relief for two cables or two flex conduits via coupled clamping mechanism
	Materials	ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
	Safety Agency	UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
	Dimensions	196 mm diameter x 138 mm depth from back of baffle (7.7 in diameter x 5.4 in depth)
	Ceiling Cutout Size	Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
	Ceiling Thickness Range	Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses.
	Safety Seismic Attachment	One point, top surface
	Net Weight	1.6 kg (3.5 lbs, one speaker)
	Shipping Weight	6.7 kg (14.7 lbs, pair in master carton)
