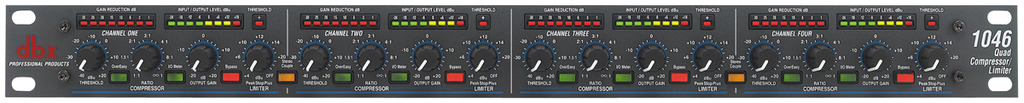

Input Connectors |
XLR and 1/4" TRS (Pin 2 and tip hot) |
|
Input Type |
Electronically balanced/unbalanced, RF filtered |
|
Input Impedance |
Balanced > 40 kOhm, unbalanced >20 kOhm |
|
Max Input |
> +22 dBu balanced or unbalanced |
|
CMRR |
Typically >50 dB at 1 kHz |
|
Output Connectors |
XLR and 1/4" TRS (Pin 2 and tip hot) |
|
Output Type |
Servo-balanced/unbalanced, RF filtered |
|
Output Impedance |
Balanced 30 Ohm, unbalanced 15 Ohm |
|
Max Output |
> +22 dBm balanced, > +20 dBm unbalanced |
|
Bandwidth |
20 Hz to 20 kHz, +0/-0.5 dB |
|
Frequency Response |
0.35 Hz to 90kHz, +0/-3 dB |
|
Noise |
< -96 dBu, unweighted, 22 kHz measurement bandwidth |
|
Dynamic Range |
> 118 dB, unweighted |
|
THD+Noise |
>0.008% typical at +4 dBu (1 kHz unity gain), 0.08% typical at +20 dBu (1 kHz unity gain), < 0.1% any amount of compression up to 40 dB, 1 kHz |
|
IMD |
< 0.1% SMPTE |
|
Interchannel Crosstalk |
< -80 dB 20Hz to 20 kHz |
|
Stereo Coupling |
True RMS Power Summing |
|
Compressor Threshold Range |
-40 dBu to +20 dBu |
|
Compressor Ratio |
1:1 to infinity:1 |
|
Compressor Threshold Characteristic |
Selectable OverEasy® or hard knee |
|
Compressor Attack/Release Characteristic |
AutoDynamic™ |
|
Compressor Attack Time |
Program-dependent |
|
Compressor Release Time |
Program-dependent |
|
Compressor Output Gain |
-20 to +20 dB |
|
Limiter Threshold Range |
0 dBu to +24 dBu (off) |
|
Limiter Ratio |
infinity:1 |
|
Limiter Type |
PeakStopPlus® two-stage limiter |
|
Limiter Stage 1 |
PeakStop® brickwall limiter |
|
Limiter Stage 1 Attack Time |
Zero |
|
Limiter Stage 1 Release Time |
Zero |
|
Limiter Stage 2 |
Predictive intelligent program limiter |
|
Limiter Stage 2 Attack Time |
Program-dependent |
|
Limiter Stage 2 Release Time |
Program-dependent |
|
OverEasy® Switch |
Activates the OverEasy compression function |
|
I/O Meter Switch |
Switches between monitoring input and output levels on the Input/Output Level meter |
|
Bypass Switch |
Activates the direct input-to-output hard-wire bypass |
|
Operating Level Switch |
(rear panel) Switches the nominal operating level between -10 dBV and +4 dBu simultaneously for both input and output levels |
|
ST Link Switch |
Links channels in stereo pairs. Channels One and Three become the master channels |
|
Gain Reduction Meter |
8 segment LED bar graph at 1, 3, 6, 10, 15, 20, 25, and 30 dB |
|
I/O Meter |
8-segment LED bar graph at -24, -18, -12, -6, 0, +6, +12, and +18 dBu |
|
PeakStop™ Indicator |
1 LED to indicate PeakStop™ limiting |
|
Function Switches |
LED indicator for each front-panel switch |
|
Output Transformer Options |
Jensen® JT-123-dbx or JT- 11-dbx, BCI RE- 123-dbx or RE-11-dbx |
|
Operating Voltage |
Switchable:100-120 VAC 50-60 Hz or 200-240 VAC 50/60 Hz |
|
Power Consumption |
20 Watts |
|
Fuse |
100-120 VAC:250 mA Slow Blow, 200-240 VAC:125 mA Type T |
|
Power Connector |
IEC receptacle |
|
Dimensions |
1.75"Hx19"Wx9"D (4.4cmx48.3cmx20.1cm) |
|
设备重量 |
5.2 lbs. (2.4 kg) |
|
Shipping Weight |
7.6 lbs. (3.5 kg) |
