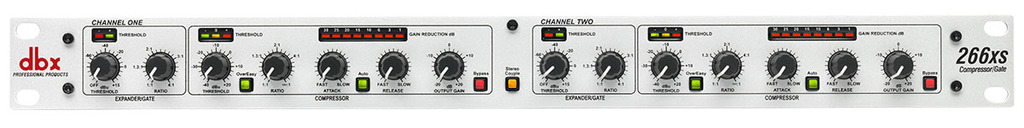

DBX Dual Compressor Gate 266XS

Model: DBX Dual Compressor Gate 266XS

Hãng : DBX/Mỹ (Chính hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 5.600.000 vnđ

266xs Compressor / Gate

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

Features

Error proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes

New gate timing algorithms ensure the smoothest release characteristics

Program-adaptive expander/gates

Great sounding dynamics control for any type of program material

Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup

Stereo or dual-mono operation

Balanced inputs and outputs on 1/4" TRS and XLR connectors

Side Chain insert

Classic dbx® "Auto" mode

Specifications

Input Connectors	1/4" TRS and female XLR (pin 2 hot)
Input Type	Electronically balanced/unbalanced, RF filtered
Input Impedance	40kΩ balanced/unbalanced
Max Input	>+22dBu Balanced or Unbalanced
Output Connectors	1/4" TRS, female XLR (pin 2 hot)
Output Type	Impedance-balanced/unbalanced, RF filtered
Output Impedance	+4dBu: 100Ω balanced, 50Ω unbalanced; -10dBu: 1kΩ balanced, 500Ω unbalanced
Max Output	>+21dBu balanced/unbalanced into 2kΩ or greater; >+18dBm balanced/unbalanced (into 600Ω)
Sidechain	1/4" TRS Phone, Normalled: Ring = Output (send); tip = Input (return)
Sidechain Impedance	Tip = >10kΩ (Input), Ring = 2kΩ (Output)
Sidechain Max Input Level	Tip = >+22dBu (Input)
Sidechain Max Output Level	Ring = >+20dBu (Output)
Compressor Threshold Range	-40dBu to +20dBu
Compressor Threshold Characteristic	Selectable OverEasy® or hard knee
Compressor Ratio	1:1 to Infinity:1
Compressor Attack Time	Scalable Program-Dependent AutoDynamic™
Compressor Release Time	Scalable Program-Dependent AutoDynamic™
Expander/Gate Threshold Range	-60dBu to +15dBu
Expander/Gate Ratio	1:1 to 4:1
Expander/Gate Attack Time	<100µs
Expander/Gate Release Time	Program-dependent
Bandwidth	0.35Hz - 90kHz, +0/-3dB
Frequency Response	Flat: 20Hz-20kHz, +0, -0.5dB
Noise	<-93dBu unweighted (22kHz measurement bandwidth)
THD+Noise	Typically <0.2%; Any Amount of Compression @1kHz
IMD	Typically <0.2% SMPTE
Dynamic Range	>114 dB, unweighted
Interchannel Crosstalk	<-95dB, 20Hz to 20kHz
CMRR	>40dB, typically >55dB at 1kHz
Stereo Coupling	True RMS Power Summing™
Power Consumption	15 Watts Maximum
Operating Voltage	100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
Operating Temperature	0°C to 45°C (32°F to 113°F)
Dimensions	1.75" x 5.75" x 19" (4.45 cm x 14.6 cm x 48.26 cm )
设备重量	4.84 lbs (2.19 kg)
Shipping Weight	6.6 lbs (2.99 kg)
Reference	0dBu = 0.775Vrms
