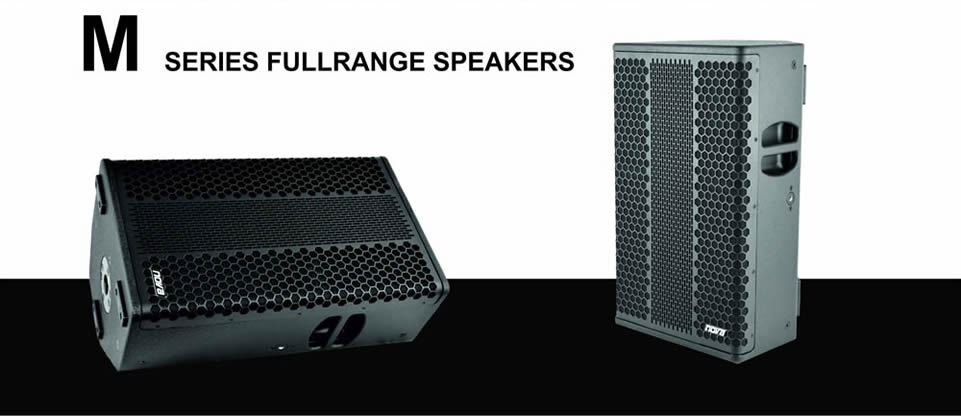

SPEAKER PASSIVE NOVA M15
2-Way Multifunctional Fullrange Speakers
The passive M-Series loudspeakers are uncompromising and multifunctional fullrange and monitor speakers. Equipped with modern chassis technology and perfect tuned passive crossovers, the M-Series can deliver outstanding sound quality and very high dynamic. Ideal to use as FOH loudspeaker, delay, monitor, frontfill on large stages or in high grade installations. Compatible to all M-Series active and passive Bass Systems
Features
►HF compression driver with 1.75” voice coil
► PM4 polymer voice coil technology
► 60° x 40° nominal coverage
► Airflow optimized front grill
► Compact design
► Speaker stand adapter
► Ergonomic grip handles
► Rotatable horn
► 2 x 10mm rigging points for UMB brackets
► 13 additional M8 rigging points
► NOVA Polyurea finish
SPEAKER PASSIVE NOVA M15
TECHNICAL DATA
M 15 |
|
15", two-way, bass-reflex, stage-monitor / utility |
|
40 Hz - 20 kHz |
|
50 Hz - 18 kHz |
|
60° x 40° nominal (HxV) |
|
Rotatable horn |
|
Passive |
|
1.350 Hz |
|
Passive: 600 W / 1.200 W |
|
131 dB SPL peak |
|
101 dB SPL |
|
1 x NOVA 15/600EL-8 (3 in. voice coil) |
|
8 ohms (passive) |
|
n/a |
|
n/a |
|
1 x BEYMA© TPM4-2500-8, 1.75 in. voice coil |
|
8 ohms (passive) |
|
n/a (passive) |
|
Monitor / untility speaker, 15 mm, birch plywood |
|
35 mm pole socket, 13 x M8, 2 x M10 for optional bracket |
|
2 x integrated handles |
|
Black Polyurea Coating |
|
Powder coated, black perforated steel with acoustic |
|
transparent charcoal foam backing |
|
2 x Neutrik© Speakon© NL4 |
|
1+/1- (2+/2- linked from input to output) |
|
410 mm x 650 mm x 364 mm |
|
24 kg |
|
FP2: Flexible tilt / pitch (Article number: # 80037) |
|
UMB15: U-bracket for M15 |
|
UTA1: Adapter for truss clambs |
|
UB15: Safety cover for M15 |
|
PG1: Professional L-Grip |
