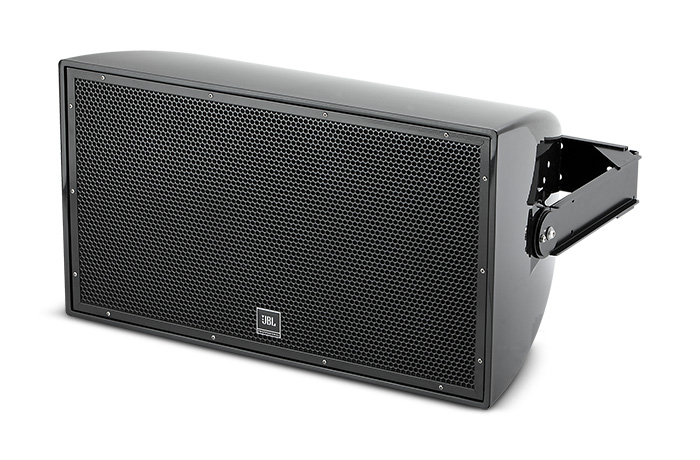

Loa JBL AW 295

Model: Loa JBL AW 295

Hãng: JBL/Mỹ (chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 96.700.000 vnđ

AW 295 High Power 2-Way All Weather Loudspeaker with 1 x 12" LF & Rotatable Horn , 500W/2000W 8-ohms 132dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

High Power 2-Way All Weather Loudspeaker with 1 x 12" LF & Rotatable Horn

The AW295 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW295 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

FEATURES

∧

Weather-Resistant, All Fiberglass Enclosure
90° x 50° Coverage
2262H Differential Driver® Low- Frequency Driver
2432H High Frequency Compression Driver
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable wave guide for vertical or horizontal orientation
Available in Gray and Black finish
400 W, 70/100V Transformer Included
U-type Mounting Bracket Included

SPECIFICATIONS

	Frequency Range (-10 dB)	43 Hz – 20 kHz
	Frequency Response (±3 dB)	53 Hz – 18 kHz
	Coverage Pattern	90° x 50°, rotatable waveguide
	Directivity Factor (Q)	12.6
	Directivity Index (DI)	11 dB
	Crossover Frequency	1.3 kHz
	Long-Term System Power Rating (IEC)	500 W (2000 W peak), 100 hrs
	Maximum SPL	126 dB-SPL cont avg (132 dB peak)
	System Sensitivity (1W @ 1m)	98 dB SPL
	70V/100V Transformer Taps	70V: 400 W, 200 W, 100W 100V: 400W, 200W
	Low Frequency Driver	1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with (3 in) dual voice coil
	LFD Nominal Impedance	8 ohms
	LFD Sensitivity (1W @ 1m, within operational band)	96 dB SPL
	High Frequency Driver	JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
	HFD Nominal Impedance	8 ohms
	HFD Sensitivity (1W @ 1m)	113 dB SPL
	Waveguide	PT-H95HF-1
	Enclosure	Hand-Laminated Fiberglass, gray gelcoat (black available)
	Suspension Attachment	2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
	Grille	Three layer grille assemblies consisting of 14-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
	Input Connector	CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
	Environmental Specifications	IP56 per IEC529
	Dimensions (H x W x D in horizontal cabinet orientation)	409 x 732 x 452 mm (16.1 x 28.8 x 17.8 in)
	Net Weight	25.2 kg (55.5 lb)
