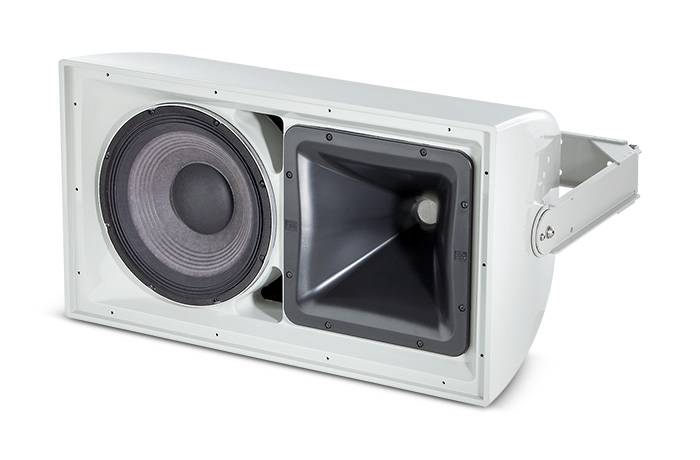

Loa JBL AW 266

Model: Loa JBL AW 266

Hãng: JBL/Mỹ (chính Hãng,có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn hãng SX

Giá bán: 96.890.000 vnđ

AW 266 High Power 2-Way All Weather Loudspeaker with 1 x 12" LF, 500W/2000W 8-ohms 132dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

High Power 2-Way All Weather Loudspeaker with 1 x 12" LF

The AW266 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW266 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

FEATURES

∧

Weather-Resistant, All Fiberglass Enclosure
60° x 60° Coverage
2262H Differential Driver® Low- Frequency Driver
2432H High Frequency Compression Driver
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
Available in Gray and Black finish
400 W, 70/100V Transformer Included
U-type Mounting Bracket Included

SPECIFICATIONS

	Frequency Range (-10 dB)	40 Hz – 20 kHz
	Frequency Response (±3 dB)	51 Hz – 18 kHz
	Coverage Pattern	60° x 60° waveguide
	Directivity Factor (Q)	15.8
	Directivity Index (DI)	12 dB
	Crossover Frequency	1.1 kHz
	Long-Term System Power Rating (IEC)	500 W (2000 W peak) 100 hrs
	Maximum SPL	126 dB SPL (132 dB peak)
	System Sensitivity (1W @ 1m)	98 dB
	70V/100V Transformer Taps	70V: 400 W, 200 W, 100W 100V: 400W, 200W
	Low Frequency Driver	1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
	LFD Nominal Impedance	8 ohms
	LFD Sensitivity (1W @ 1m, within operational band)	96 dB SPL
	High Frequency Driver	JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
	HFD Nominal Impedance	8 ohms
	HFD Sensitivity (1W @ 1m)	113 dB SPL
	Waveguide	PT-H66HF-1
	Enclosure	Hand-Laminated Fiberglass, gray gelcoat (black available)
	Suspension Attachment:	2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
	Grille	Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
	Input Connector	CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
	Environmental Specifications:	IP56 per IEC 529
	Dimensions (H x W x D in horizontal cabinet orientation)	409 x 732 x 452 mm (16.1 x 28.8 x 17.8 in)
	Net Weight	25.2 kg (55.5 lb)
